Electric Bike Specifications
Frame
Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg
Handlebar
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem
Tern Andros, adjustable, forged construction, patented technology
Headset
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Grips
Ergon
Saddle
Tern GSD by Velo
Seatpost
Tern VLT (Very Large Telescope) with LightAction levers
Seatpost Clamp
Tern Collar
Front Brake
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers
Magura MT5 e-stop, hydraulic, with brake light sensor
Front Wheel
Tern Atlas, heavy duty cargo wheel
Rear Wheel
Tern Atlas, heavy duty cargo wheel
Front Hub
Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub
Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
Rims
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tyres
F: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
Shifters
Shimano Deore, 1 x 10 spd
Rear Derailleur
Shimano Deore Shadow+
Crankset
Tern GSD, forged 6061-AL DH crankarm
Cassette
Shimano 11-42T, 10 spd
Bottom Bracket
Motor integrated
Chain
KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals
Urban with non-slip surface, sealed bearings
Motor

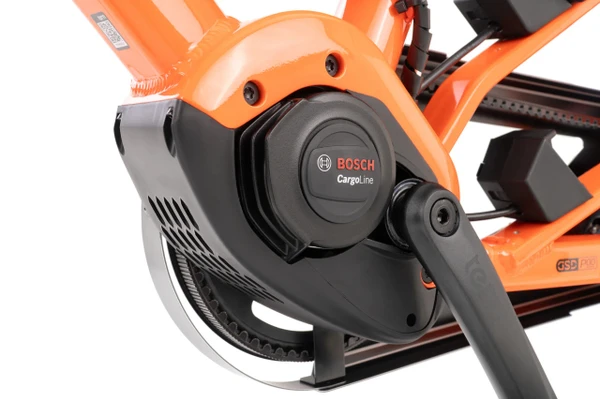

Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 15.5 mph (EU)
Battery
Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
Display
Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Smartphone app, electronic bike lock
Range
545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Bosch Connect Module
Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti Lock Braking
Bosch Anti-Lock Braking System, Gen 2
Chainguard
Tern GSD, full chain cover
Kickstand
Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket
Combo Mount
Front Light
Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light
RearStop Brake Light, Always on
Mudguards
F: Aluminum R: GSD wheel guard
Rear Rack
Atlas G, 100 kg (220 lb) capacity
Frame Lock
ABUS or AXA, keyed-alike with Bosch battery
On Board Charging
USB-C, 5V/2.4A, 12W max
